1. Introduction to Universal Robots (UR)
Universal Robots (UR), founded in 2005 in Denmark, is widely recognized as the pioneer of collaborative robots (cobots). Unlike traditional industrial robots that require safety cages, UR’s cobots are designed to work directly alongside humans, combining advanced safety features, flexibility, and ease of use. The company introduced its first cobot in 2008, and since then, Universal Robots has revolutionized the automation industry by making robots accessible not only to large-scale manufacturers but also to small and medium-sized enterprises (SMEs).

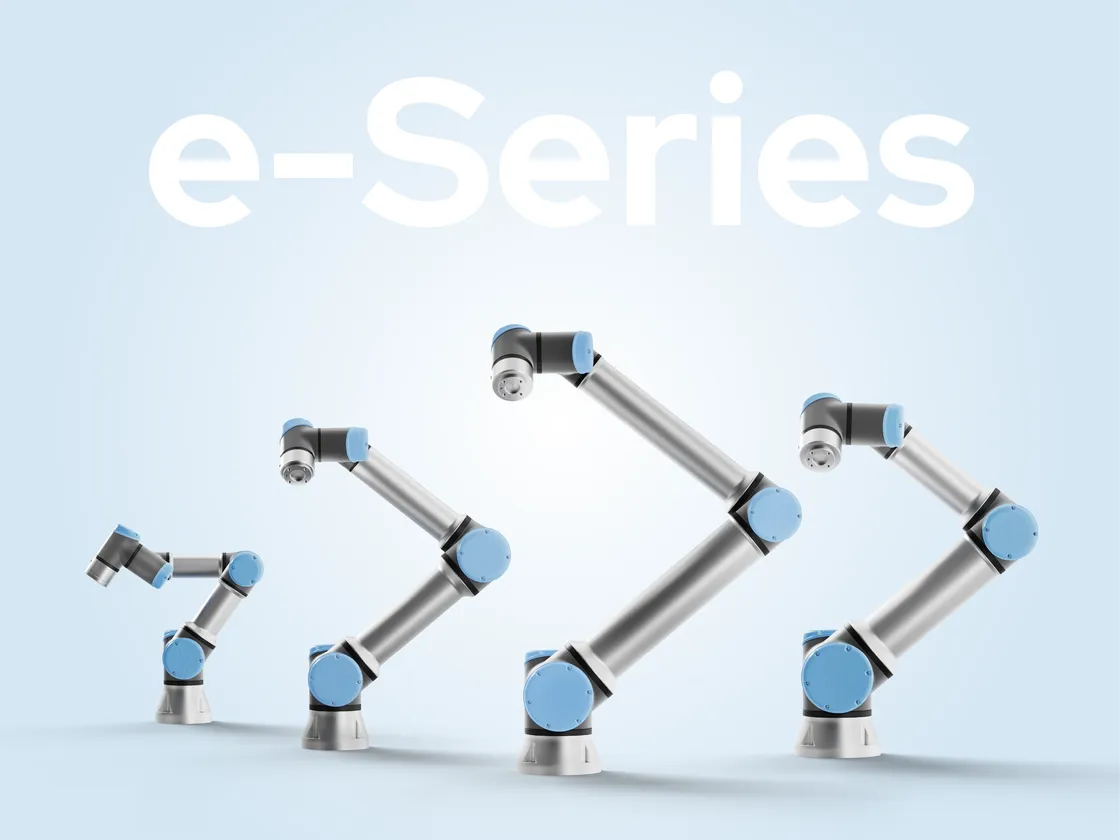

The UR “e-Series” – which includes the UR3e, UR5e, UR10e, and UR16e – represents the most advanced generation of Universal Robots. These cobots are designed with enhanced precision, expanded safety features, intuitive programming, and a modular architecture that allows them to be deployed in a wide variety of industries such as automotive, electronics, food & beverage, metalworking, logistics, and healthcare.
Each model is named according to its approximate payload capacity (in kilograms), providing clear differentiation for end-users. With payloads ranging from 3kg to 16kg, and reach from 500mm to 1300mm, the UR e-Series offers versatile automation solutions that can be tailored to different applications.
2. Overview of the UR e-Series Cobots
2.1 UR3e
- Payload: 3 kg
- Reach: 500 mm
- Weight: 11.2 kg
- Degrees of Freedom: 6
- Repeatability: ±0.03 mm
- Key Features: Compact, lightweight, and ideal for table-top tasks, lab automation, and assembly of small components.
2.2 UR5e
- Payload: 5 kg
- Reach: 850 mm
- Weight: 18.4 kg
- Degrees of Freedom: 6
- Repeatability: ±0.03 mm
- Key Features: The most versatile cobot in the portfolio, balancing payload and reach for a wide variety of applications such as pick-and-place, testing, and packaging.
2.3 UR10e
- Payload: 12.5 kg (upgraded from original 10 kg)
- Reach: 1300 mm
- Weight: 33.5 kg
- Degrees of Freedom: 6
- Repeatability: ±0.05 mm
- Key Features: Extended reach and higher payload, making it suitable for packaging, palletizing, and machine tending in medium to large workspaces.
2.4 UR16e
- Payload: 16 kg
- Reach: 900 mm
- Weight: 33.1 kg
- Degrees of Freedom: 6
- Repeatability: ±0.05 mm
- Key Features: Heavy-duty cobot designed for handling large payloads, screwdriving, heavy machine tending, and high-torque assembly applications.
3. Key Advantages of the UR e-Series
- Safety First
All e-Series cobots are TÜV-certified and feature built-in safety functions such as force-sensing, speed limits, and configurable safety settings. These features make them safe to work side-by-side with human operators. - Ease of Programming
The intuitive PolyScope software and teach pendant allow non-technical users to program tasks via drag-and-drop functionality. In addition, UR offers URCaps – a marketplace of software and hardware plugins that simplify integration. - Flexibility and Adaptability
UR cobots can be easily re-deployed across different tasks with minimal downtime. They support a wide range of end effectors (grippers, welding torches, screwdrivers, vision systems), enabling adaptation to diverse industries. - Compact and Lightweight
Unlike traditional robots that require heavy infrastructure, UR cobots are lightweight and can be mounted on workbenches, carts, or mobile robots. - High ROI
Universal Robots cobots typically achieve ROI within 6–12 months thanks to reduced labor costs, increased productivity, and scalability.
4. Technical Specifications (Detailed)
| Model | Payload | Reach | Weight | DOF | Repeatability | Typical Applications |
|---|---|---|---|---|---|---|
| UR3e | 3 kg | 500 mm | 11.2 kg | 6 | ±0.03 mm | Lab automation, assembly, screwdriving |
| UR5e | 5 kg | 850 mm | 18.4 kg | 6 | ±0.03 mm | Pick-and-place, testing, packaging |
| UR10e | 12.5 kg | 1300 mm | 33.5 kg | 6 | ±0.05 mm | Palletizing, machine tending, packaging |
| UR16e | 16 kg | 900 mm | 33.1 kg | 6 | ±0.05 mm | Heavy machine tending, screwdriving, material handling |
5. Application Scenarios
5.1 Assembly & Manufacturing
- UR3e and UR5e are ideal for precision assembly, fastening, and electronics manufacturing.
- Example: A UR3e used in a PCB assembly line for automated screwdriving.
5.2 Packaging & Palletizing
- UR10e and UR16e excel in end-of-line packaging, palletizing, and heavy lifting.
- Example: A UR10e integrated into a packaging line reduces manual lifting injuries and increases throughput by 40%.
5.3 Quality Inspection
- Equipped with vision systems (Keyence, Cognex), UR cobots automate repetitive inspection tasks with high accuracy.
5.4 Machine Tending
- UR5e and UR10e automate CNC loading/unloading, reducing idle machine time and increasing efficiency.
5.5 Laboratory Automation
- UR3e supports pipetting, mixing, and sample handling, freeing up lab technicians for higher-value tasks.
6. Industry Case Studies
- Electronics Industry (Asia)
- UR3e cobots used for micro-assembly tasks.
- Outcome: Increased production efficiency by 30%.
- Automotive Industry (Germany)
- UR16e deployed for handling heavy components in engine assembly.
- Outcome: Reduced ergonomic risks and improved cycle time.
- Food & Beverage (USA)
- UR10e used for end-of-line packaging.
- Outcome: 24/7 operations with consistent product handling.
- Healthcare (Europe)
- UR5e cobots automate lab workflows in hospitals.
- Outcome: Faster test sample processing and reduced contamination risks.
7. Competitive Advantages
- Global Ecosystem: UR+ platform offers over 300 certified accessories.
- User-Friendly Software: No coding experience required.
- Scalability: From small workshops to global factories.
- Proven Track Record: Over 75,000 cobots installed worldwide (as of 2023).
- Strong ROI: SMEs can access automation without large upfront investments.
8. Comparison with Competitors
- Fanuc CRX Series: Strong payload options, but more complex integration.
- ABB GoFa Series: Higher payloads but higher cost.
- JAKA / AUBO: Cost-effective alternatives but lack the global UR+ ecosystem.
UR cobots remain the industry leader due to their ease of use + ecosystem support + global brand trust.
9. ROI and Business Value
Universal Robots cobots typically achieve ROI within 6–12 months.
- Labor savings: Reduce manual labor requirements.
- Productivity gains: Increase cycle time efficiency by 20–40%.
- Quality improvements: Consistent and repeatable processes.
- Flexibility: Deploy across multiple lines or sites.
10. Future Outlook
With increasing labor shortages and rising wages globally, UR cobots are positioned to dominate the collaborative robotics market. The company continues to expand its UR+ ecosystem and improve the e-Series platform, with a strong focus on AI integration, cloud connectivity, and Industry 4.0 compliance.
11. Conclusion
The Universal Robots e-Series (UR3e, UR5e, UR10e, UR16e) represents the gold standard of collaborative robotics. With versatile payloads, intuitive programming, and proven ROI, UR cobots are trusted worldwide across industries. Whether you are a small workshop or a multinational manufacturer, UR cobots offer a scalable, safe, and cost-effective path to automation.
| Model | Payload | Reach | Weight | DOF | Repeatability | Typical Applications |
|---|---|---|---|---|---|---|
| UR3e | 3 kg | 500 mm | 11.2 kg | 6 | ±0.03 mm | Lab automation, assembly, screwdriving |
| UR5e | 5 kg | 850 mm | 18.4 kg | 6 | ±0.03 mm | Pick-and-place, testing, packaging |
| UR10e | 12.5 kg | 1300 mm | 33.5 kg | 6 | ±0.05 mm | Palletizing, machine tending, packaging |
| UR16e | 16 kg | 900 mm | 33.1 kg | 6 | ±0.05 mm | Heavy machine tending, screwdriving, material handling |
