1. Product Overview

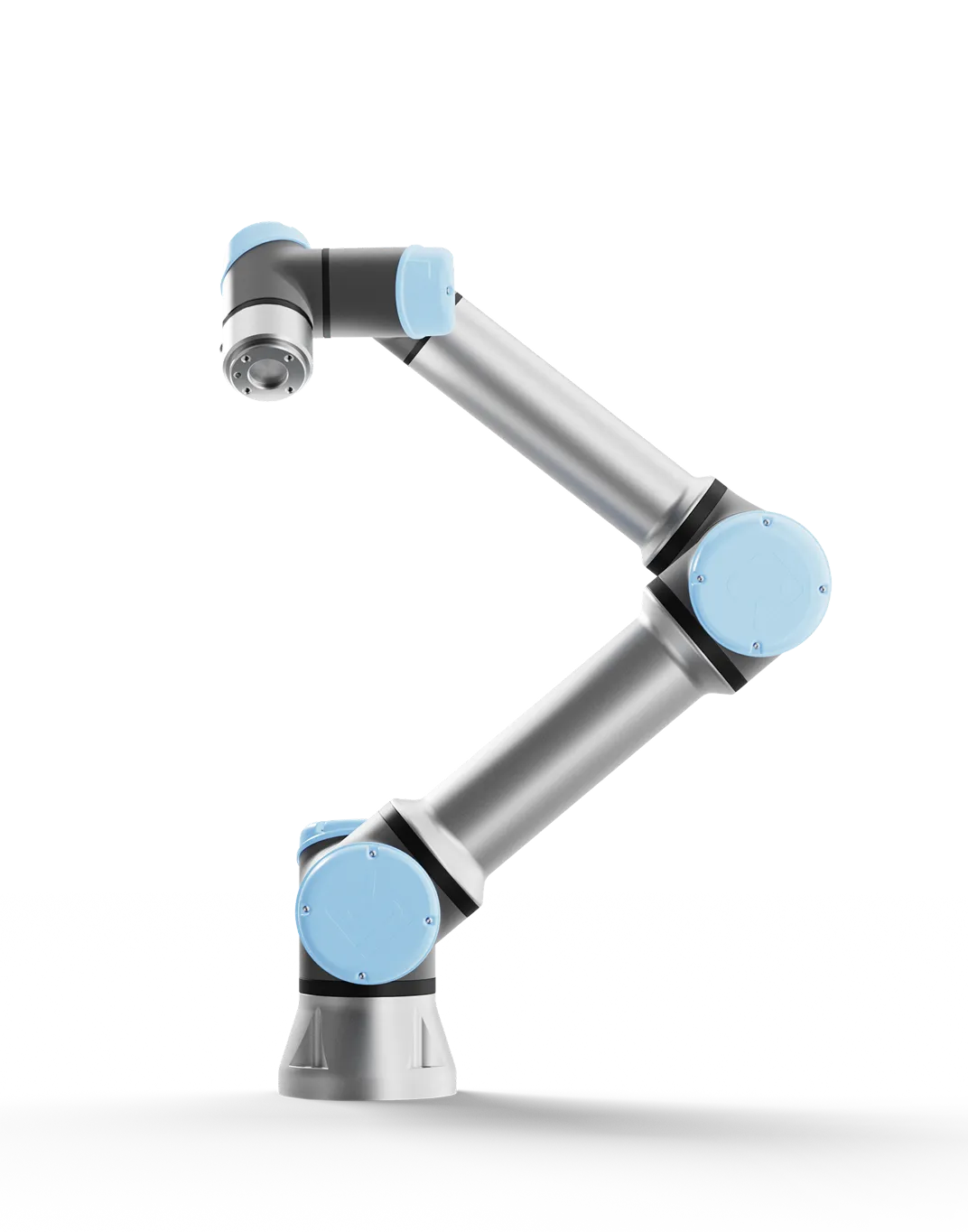

The UR7e is a mid-range collaborative robot in the Universal Robots e-Series, positioned between light and medium payload models. It features a 7.5 kg payload, 850 mm reach, and ±0.03 mm repeatability, bridging the performance gap between UR3e and UR12e. The UR7e combines higher payload capacity with a compact footprint, making it ideal for machine tending, precision assembly, screwdriving, quality inspection, and laboratory automation.
Built on the proven e-Series architecture, the UR7e includes advanced force/torque sensing, precise motion control, and seamless compatibility with the UR+ ecosystem, allowing users to integrate a wide range of certified end-effectors and software add-ons. Its flexible design enables deployment in small workcells, existing production lines, and research labs.
2. Technical Specifications
| Specification | Value |
|---|---|
| Payload | 7.5 kg / 16 lbs |
| Reach | 850 mm / 33.5 in |
| Repeatability | ±0.03 mm |
| Weight | 20.6 kg / 45.4 lbs |
| Footprint | Ø 151 mm / 5.94 in |
| Degrees of Freedom | 6 axes |
| IP Rating | IP54 |
| Integrated Sensor | Built-in force/torque sensor |
| Programming Interface | PolyScope 5 GUI, 12″ touchscreen |
| Average Power Consumption | Max 570 W, typical ~250 W |
| Operating Temperature | 0–50 °C |
3. Key Advantages
3.1 Balanced Performance
The UR7e provides 7.5 kg payload capacity and 850 mm reach, making it suitable for a wide range of mid-payload applications. Its compact design allows operation in constrained spaces, meeting modern manufacturing requirements for flexibility and scalability.
3.2 Fast Deployment
Designed for rapid deployment, UR7e can be unboxed, installed, programmed, and operational within an hour. This enables manufacturers to respond quickly to production changes, reducing downtime and accelerating ROI.
3.3 Energy Efficient
UR7e operates with low power consumption, typical running power is approximately 250 W, comparable to a standard desktop computer. Low energy usage makes it ideal for long shifts while reducing operational costs.
3.4 Space Saving
With a footprint of only Ø 151 mm, UR7e fits into compact workcells and constrained production environments, making it ideal for retrofitting existing lines with automation solutions.
3.5 Safe Collaborative Operation
Equipped with integrated force/torque sensors, UR7e supports safe human-robot collaboration. Its safety features comply with TÜV-certified standards EN ISO 13849-1 and EN ISO 10218-1, automatically stopping or slowing the robot when it detects human contact, allowing operation without protective fencing after proper risk assessment.
4. Application Areas
4.1 Machine Tending
UR7e automates repetitive loading and unloading of CNC machines, improving throughput, reducing human errors, and enhancing workplace safety.
4.2 Precision Assembly
High repeatability enables UR7e to perform precise assembly tasks in electronics, medical devices, and small machinery. It ensures consistent quality and minimizes rework.
4.3 Screwdriving
UR7e can integrate with UR+ certified screwdrivers to automate screwdriving operations in appliances, automotive, and electronics manufacturing.
4.4 Inspection & Quality Control
UR7e works with vision systems to perform automated inspection, measuring dimensions, detecting defects, and supporting consistent quality in electronics and mechanical parts.
4.5 Laboratory & Research Automation
UR7e’s compact size and precision make it suitable for liquid handling, sample processing, and repetitive testing, improving accuracy, efficiency, and safety in laboratory environments.
5. Industry Positioning & Value
UR7e is positioned as a flexible and high-performance mid-payload collaborative robot, bridging the gap between light-duty and heavy-duty cobots. Its versatility, ease of use, and UR+ compatibility make it ideal for increasing productivity, reducing setup costs, and supporting automation across multiple industries, including automotive, electronics, medical, food, and laboratory research.
By enabling manufacturers to implement automation rapidly and cost-effectively, UR7e helps companies achieve high ROI in months, improve consistency, and reduce reliance on manual labor.
6. Comparison with Other e-Series Models
| Model | Payload | Reach | Repeatability | Typical Applications |
|---|---|---|---|---|
| UR3e | 3 kg | 500 mm | ±0.03 mm | Small-part handling, lab automation, screwdriving |
| UR5e | 5 kg | 850 mm | ±0.03 mm | Pick-and-place, inspection, light machine tending |
| UR7e | 7.5 kg | 850 mm | ±0.03 mm | Medium payload tasks, assembly, inspection, machine tending |
| UR10e | 12.5 kg | 1300 mm | ±0.05 mm | Palletizing, large-part handling, machine tending |
| UR16e | 16 kg | 900 mm | ±0.05 mm | Heavy-duty handling, high-torque screwdriving |
UR7e fills the mid-payload niche with balanced reach, precision, and flexibility.
7. Installation & Maintenance
Installation
- Can be table-mounted, wall-mounted, or pillar-mounted
- Standard ISO 9409-1 flange allows easy integration with tools and end-effectors
- Supports flexible mounting in compact or retrofitted workcells
Maintenance
- Virtually maintenance-free, requiring only periodic checks
- Lubrication and cable inspection recommended
- Software updates and diagnostics available remotely via UR+ ecosystem tools
8. Deployment Benefits
- Rapid Automation – Less than one hour from unpacking to operational.
- Reduced Labor Dependency – Handles repetitive tasks safely and efficiently.
- High Precision – ±0.03 mm repeatability ensures consistent quality.
- Scalable Solutions – Easily redeployable to different stations.
- Energy Efficiency – Low operational cost with minimal power consumption.
9. Future Outlook
The UR7e reflects the trend toward compact, flexible, and mid-payload collaborative robotics, enabling SMEs and large manufacturers to automate processes quickly and cost-effectively. With the growing need for precision manufacturing and rising labor costs, UR7e is expected to see broad adoption in electronics, medical devices, laboratory research, and general assembly operations.
10. Conclusion
UR7e is a compact, precise, and versatile collaborative robot, ideal for medium payload tasks that require repeatability, flexibility, and human-robot collaboration. Key highlights include:
- 7.5 kg payload with 850 mm reach
- ±0.03 mm repeatability for precision applications
- Easy programming with PolyScope GUI and UR+ ecosystem compatibility
- Safe collaborative operation certified by TÜV
- Rapid deployment and ROI within months
UR7e is a powerful mid-payload solution for modern automation, bridging the gap between light and heavy-duty cobots in the Universal Robots e-Series family.
| Model | Payload | Reach | Repeatability | Typical Applications |
|---|---|---|---|---|
| UR3e | 3 kg | 500 mm | ±0.03 mm | Small-part handling, lab automation, screwdriving |
| UR5e | 5 kg | 850 mm | ±0.03 mm | Pick-and-place, inspection, light machine tending |
| UR7e | 7.5 kg | 850 mm | ±0.03 mm | Medium payload tasks, assembly, inspection, machine tending |
| UR10e | 12.5 kg | 1300 mm | ±0.05 mm | Palletizing, large-part handling, machine tending |
| UR16e | 16 kg | 900 mm | ±0.05 mm | Heavy-duty handling, high-torque screwdriving |
…
